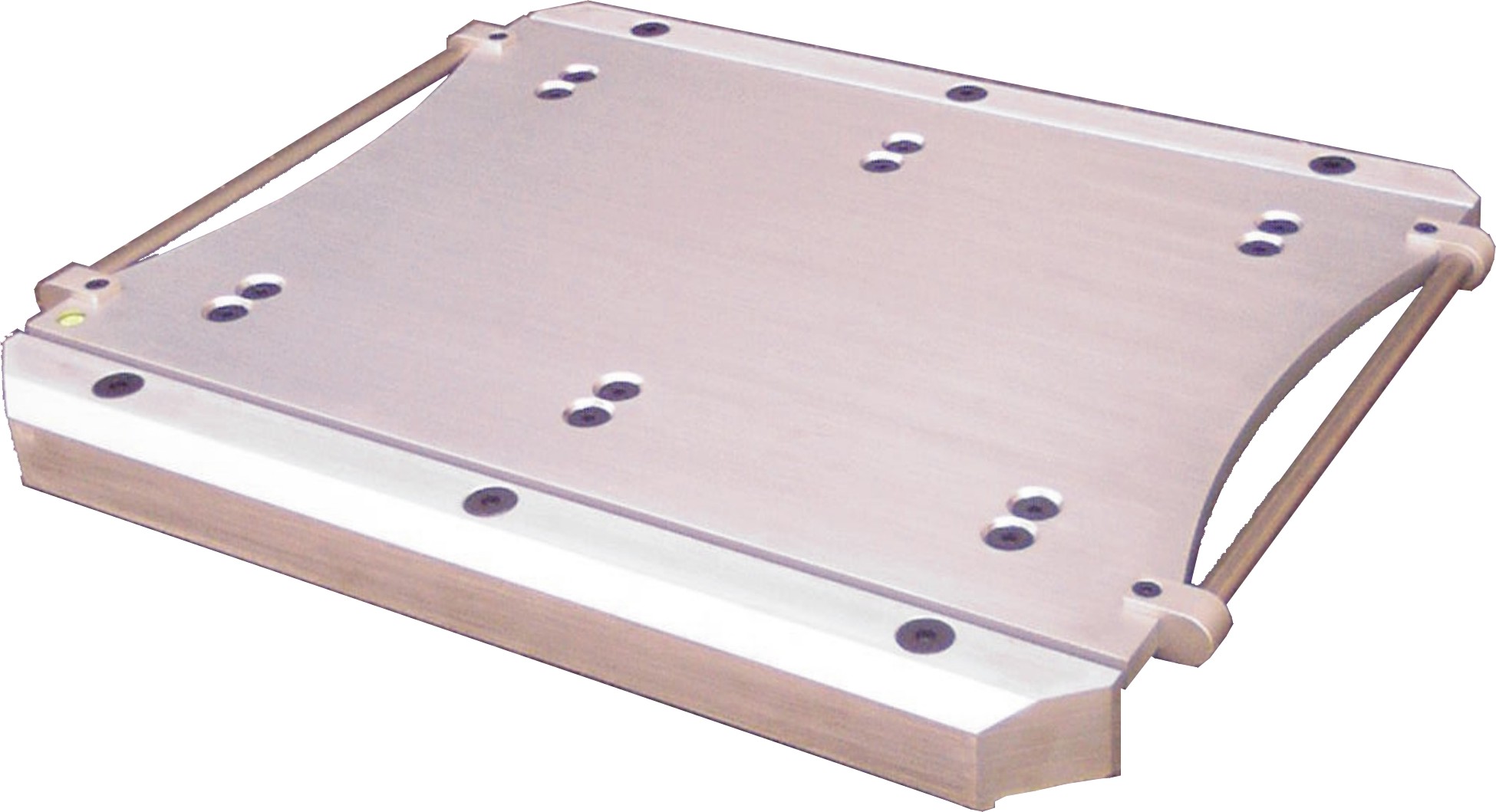

Industrial Scalesweight plate for Veichle
Model:weight plate for Veichle Code:PPA
Structure in aluminium 2 ramps included in the structure.
Measuring the weight with load cells.
Carrying handles can be connected individually or in pairs (maximum fine to 4).
Connectable with Extrim Indicators or Plug&Weigh
Weight: 22kg
Dimension: 600 x 527 mm
Height: 53mm
Capacity: kg 1000
kg 3000
kg 10.000
- Technote
- Related articles (2)
- Accessories (0)
Options
1. WF wireless transmission to indicator.
Our constant research for the solution of our customer problems has brought us to achieve WF, the innovative wireless weight system which allow you to connect any
weighing platform and weigh bridges any kind and dimension, to the weighing indicator or to a PC, without the wiring cables.
Confort, versatility, easy to install and moving are the maximum with WF.
The transmission system consisting of two transceiver RF which can realize a wireless bi-directional communication.
The maximum RX/TX range, if the antennas are in LOS, can reach a maximum of 40 meters.
With a directional antenna you can reach until 350 meters.
It’ a Trade Approved system.
No accessories have been provided for this product.
